Description

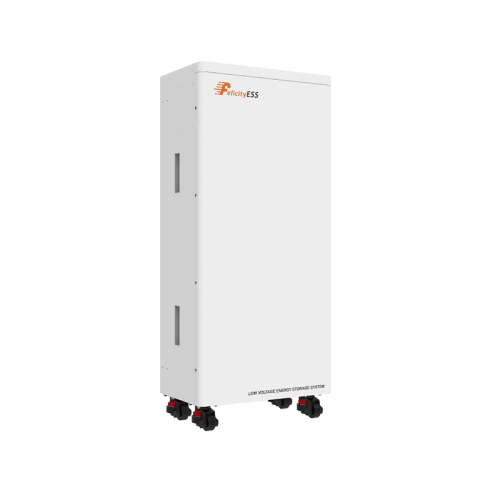

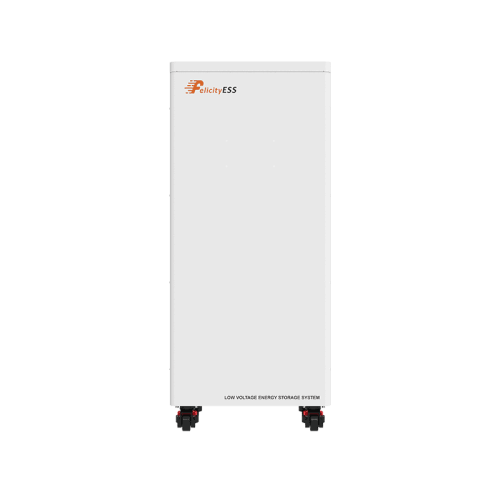

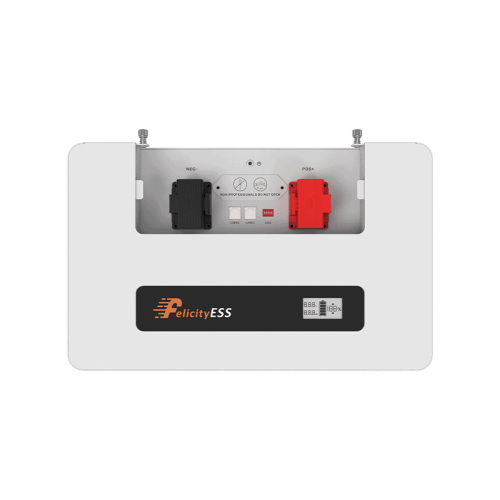

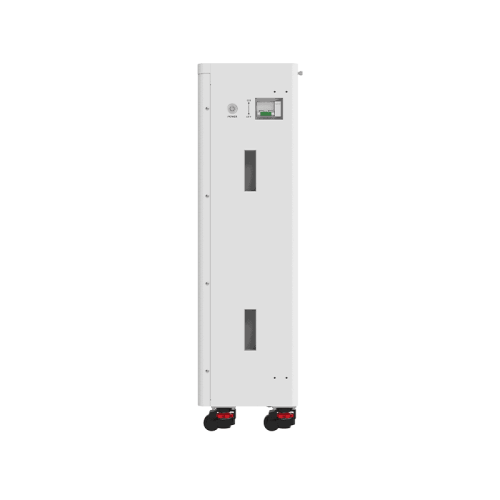

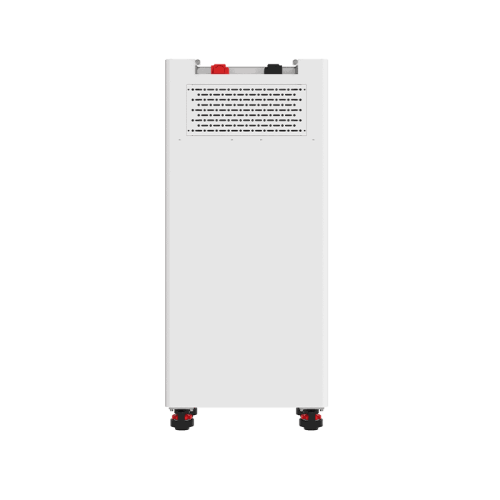

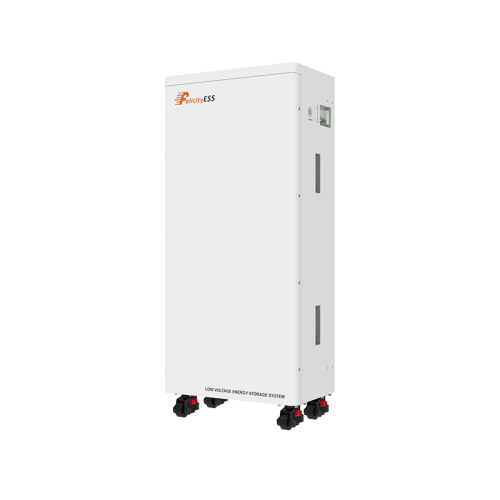

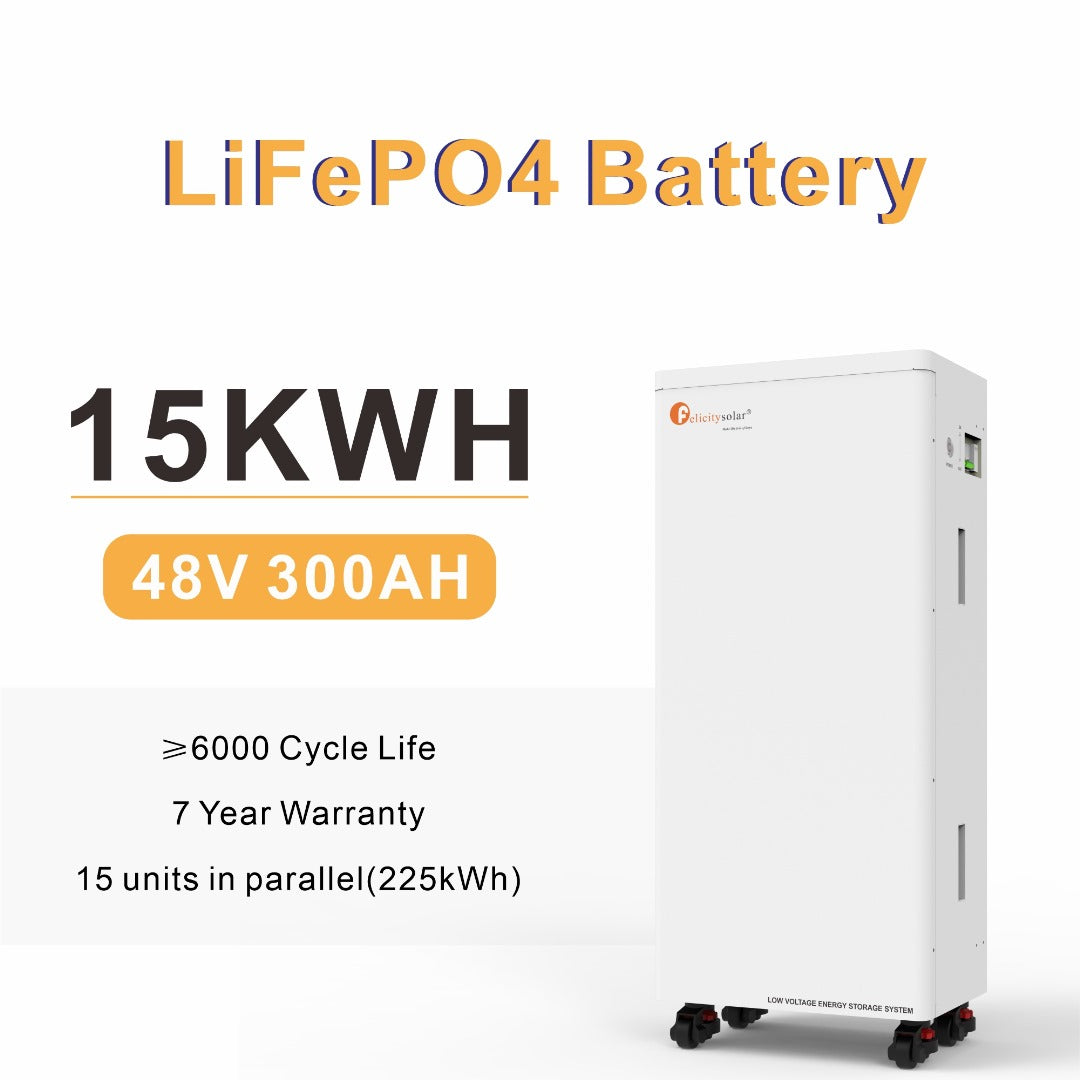

LiFePO4 Lithium Battery 15 kwh
Product Features:
The LiFePO4 Lithium Battery 15 kwh is engineered to maximize residential and commercial solar energy efficiency. The solar battery offers a 48V high-energy density, along with a manufacturer 5-year warranty for extra peace of mind. This lithium iron battery also includes a built-in Battery Management System (BMS) that further improves functionality and safety. The battery pack's design is perfect for homes, residential apartments and commercial spaces, and it can be easily expanded by connecting in parallel with extra battery packs.
We also offer a one-year warranty with JCL SOLAR. For more information, please contact our company.
Product Data:
Model |
LPBF48300 |
Capacity |
15KWH |
Voltage |
48V |
Nominal Voltage | 51.2 |
Max. Charging Voltage | 57.6V |
Voltage Range | 48 - 57.6V |
Max. Charge & Discharge Current | 200A @ 15S |
Recommended Charge & Discharge Current |
≤ 120A |
Max. Output Power |
10000W |
Recommended Output Power |
6000W |
DOD |
≥ 95% |
Modules Connection |
1˜6in parallel |
Communication |
CAN&RS485 |
Ingres Protection |
IP21 |
Cycle Life |
≥ 6000 @ 25°C, 80% DOD |
Working Temperature Range |
Discharge: -20°C to +65°C, Charge: +0°C to +55°C |
Net Weight (kg) |
159KG |
Product Dimension |
615x350x955MM |
